Vigor N65 (2.4GHz & 5GHz)

Vigor N65 (2.4GHz & 5GHz)

Vigor N65是一台支援雙頻（2.4GHz & 5GHz）的無線USB網卡，使用者不用擔心網路擁塞問題，5GHz的頻譜可提升您的網路速度。資料傳輸值可達300Mbps，並採用MIMO技術。這台USB無線網卡可運用於您的Windows 2000/XP/Vista甚至是Win7系統。

Vigor N65安全方面採用 64/128 位元的 WEP，128位元WPA / WPA2(TKIP/AES加密)，並同時支援 802.1x 認證等，來保護你安全的連線，不用擔心機密的內容被人攔截。

1. Operation Mode

• Ad-hoc Mode and 802.11 Ad-hoc Mode
• Infrastructure Mode

2. Standard

• IEEE 802.11n / g / b / a

3. Frequency Band

• 2.4GHz Band: 2400 ~ 2483.5MHz
• 5GHz Band: 5150 ~ 5825 MHZ

4. Modulation Tech

• 802.11n / g / a : BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11b : DQPSK, DBPSK, DSSS, and CCK

5. Transmission Rate

• 802.11n : Up to 300 Mbps
• 802.11g :54, 48, 36, 24, 18, 12, 9, 6 Mbps
• 802.11b : 11, 5.5, 2, and 1Mbps
• 803.11a :54, 48, 36, 24, 18, 12, 9, 6 Mbps

6. Security

• Support 64-bit and 128-bit WEP Encryption
• Support WPA/WPA2-PSK and WPA/WPA2-EAP
• Support 802.1x Authentication

7. Transmitter Power

• 802.11n : 13dBm
• 802.11g : 14dBm
• 802.11b : 17dBm
• 802.11a : 12dBm

8. Antenna Type

• Integrated Antenna

9. Interface Type

• High Speed USB2.0 Interface

10. Receiver Sensitivity

• 802.11n : -66dBm (MAX)
• 802.11g : -76dBm (MAX)
• 802.11b : -89dBm (MAX)
• 802.11a : -72dBm (MAX)

11. Temperature

• Operating : 0 C to +40 C
• Storage : –20 C to +60 C

12. Humidity

• 10% to 90% Non-condensing

13. Operation Voltage

• 5VDC +/- 10%

14. Power Consumption

• Max: 500mA, Idle: 110mA

15. Dimension

• 83 (L) x 26.6 (W) x 9.8 (H) mm

16. OS Support

• Microsoft Windows 2000, XP, Vista, Windows 7

* Actual data throughput will vary according to the network conditions and environmental factors, including volume of network traffic, network overhead and building materials.

* Environment conditions may adversely affect wireless operation distance.

Technical Specifications of Vigor N65
Operation Modes	Ad-hoc Mode and 802.11 Ad-hoc Mode
	Infrastructure Mode
Standard	IEEE 802.11n / g / b / a
Frequency Band	2.4GHz Band: 2400 ~ 2483.5MHz
	5GHz Band: 5150 ~ 5825 MHZ
Modulation Tech	802.11n / g / a : BPSK, QPSK, 16QAM, 64QAM with OFDM
	802.11b : DQPSK, DBPSK, DSSS, and CCK
Transmission Rate	802.11n : Up to 300 Mbps
	802.11g :54, 48, 36, 24, 18, 12, 9, 6 Mbps
	802.11b : 11, 5.5, 2, and 1Mbps
	803.11a :54, 48, 36, 24, 18, 12, 9, 6 Mbps
Security	Support 64-bit and 128-bit WEP Encryption
	Support WPA/WPA2-PSK and WPA/WPA2-EAP
	Support 802.1x Authentication
Transmit Power	802.11n : 13dBm
	802.11g : 14dBm
	802.11b : 17dBm
	802.11a : 12dBm
Antenna Type	Integrated Antenna
Interface Type	High Speed USB2.0 Interface
Receiver Sensitivity	802.11n : -66dBm (MAX)
	802.11g : -76dBm (MAX)
	802.11b : -89dBm (MAX)
	802.11a : -72dBm (MAX)
Temperature	Operating : 0°C to +40°C
	Storing : -25°C to +60°C
Humidity	10% to 90% Non-condensing
Operation Voltage	5VDC +/- 10%
Power Consumption	Max : 500mA, Idle: 110mA
Dimensions	83 mm (L) * 26.6 mm (W) * 9.8 mm (H)
OS Support	Microsoft Windows 2000, XP, Vista, Windows 7

* Actual data throughput will vary according to the network conditions and environmental factors, including volume of network traffic, network overhead and building materials.
* Environment conditions may adversely affect wireless operation distance.

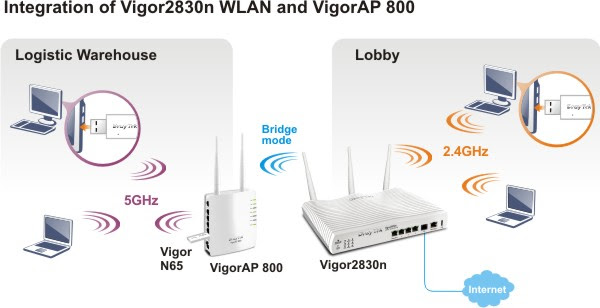

Optimized your wireless performance by dual band (2.4GHz /5GHz) capability
